What we design
Every system.
One environment.

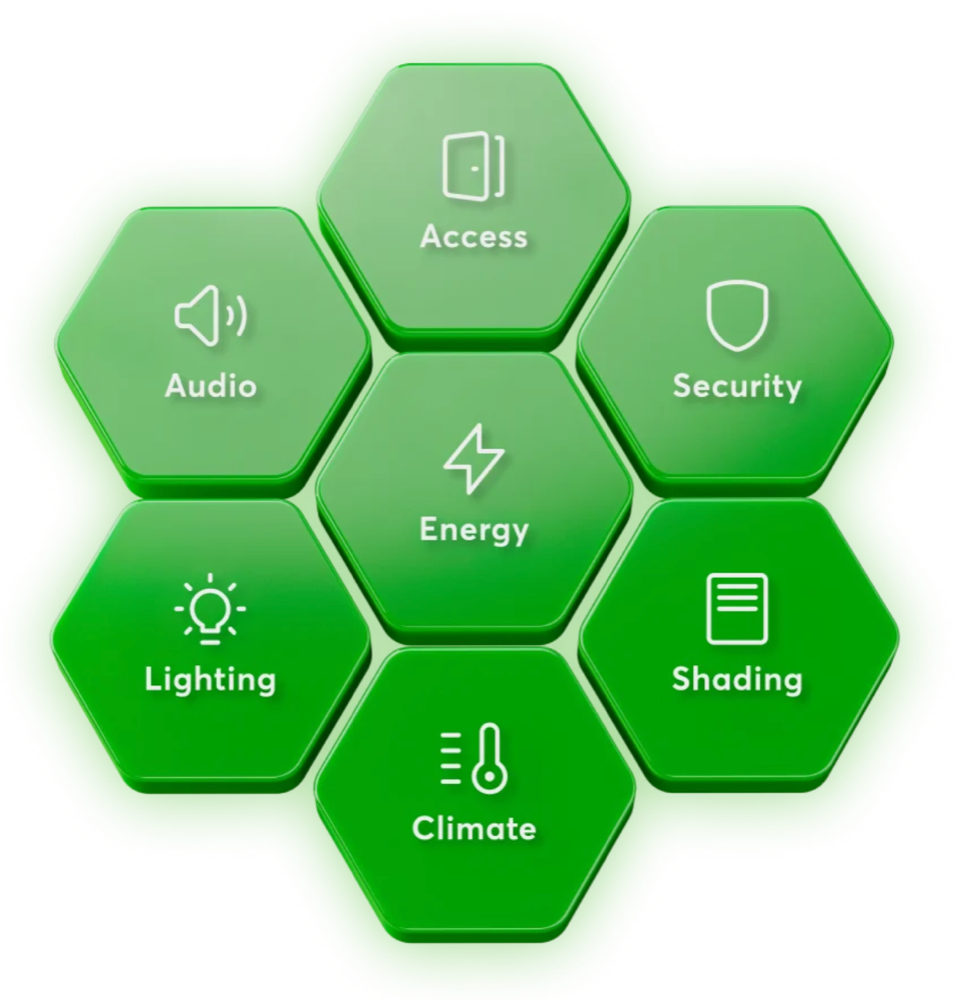

One platform, not a collection of products.
A Loxone system does not add intelligence to existing hardware — it replaces the entire control layer with a single, programmable brain. Every circuit, every sensor, every output is part of one coherent system.
That means lighting, climate, security, shading, access, and audio all share the same logic. When you arrive home, every system responds — not because you pressed a button, but because the system knows you're there.
If you are an architect or M&E consultant, we provide full system specifications — including zone schedules, cable routes, and device placement — co-ordinated with your drawings from first fix stage.
Unlike cloud-dependent systems, a Loxone Miniserver stores and processes all logic locally. Occupancy schedules, camera feeds, alarm states — none of it leaves the building. The system operates fully if the internet connection fails.
Loxone architecture
01 — Lighting
Light that works with how you live in a room.
Scene-based control across every zone. Circadian rhythm support to match natural light. Integration with shading to balance daylight and artificial light without intervention.
No visible switching where it matters. The room knows what it needs to be.
- DALI
- KNX
- Loxone Tree
- RGBW

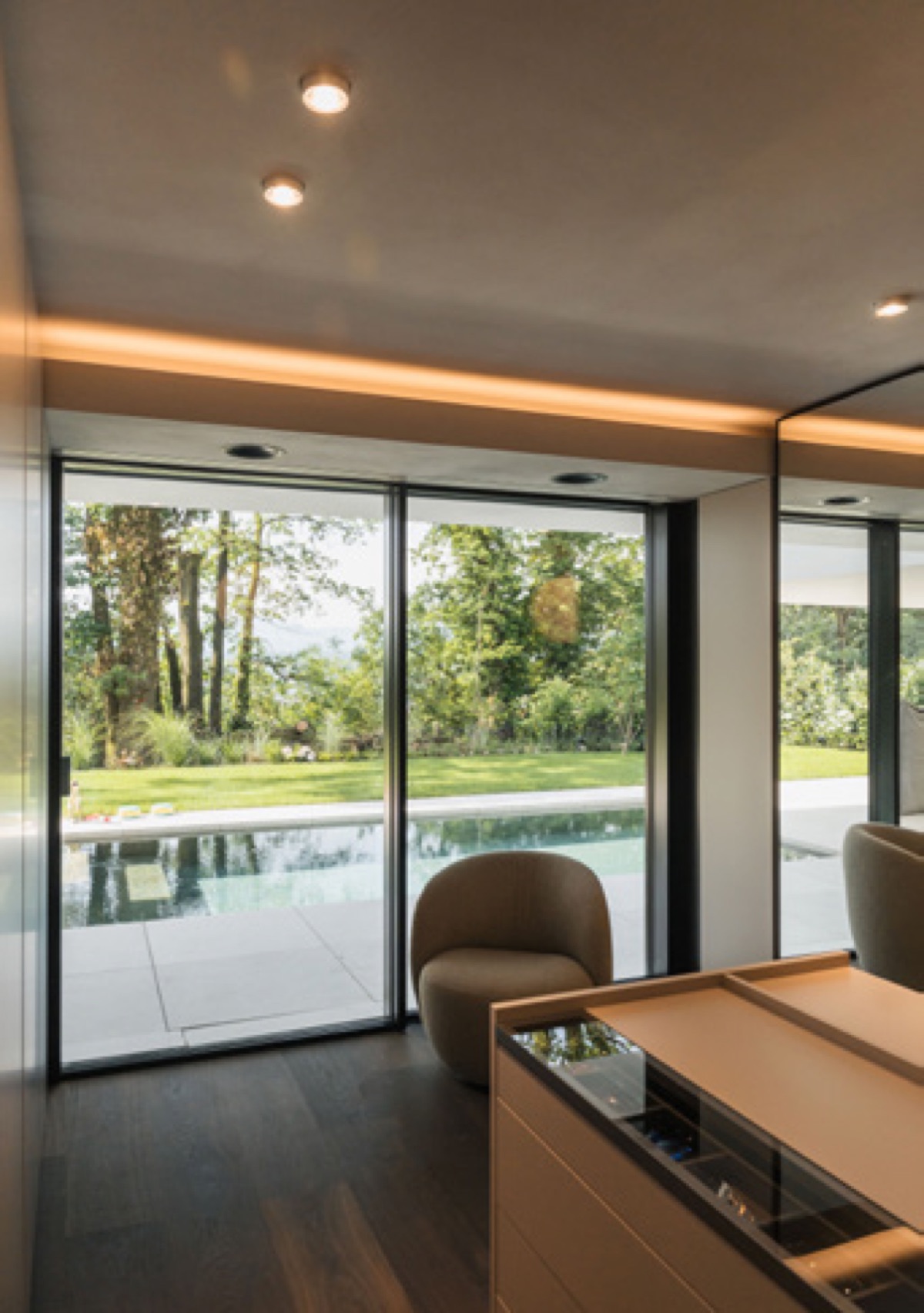

02 — Climate
The right temperature, without the management.
Room-by-room temperature control. Underfloor, radiator, and forced air unified into one system. Presence-based adaptation so unoccupied rooms don't heat.
Energy modelling is included as standard — every system we design can report on consumption and adjust accordingly.
- HVAC
- UFH
- Presence Scheduling
- Energy Monitoring
03 — Security
Hardwired intelligence, not app dependency.
Integrated alarm, CCTV, and perimeter monitoring. No consumer panels. No system that fails when the internet goes down.
Security tied to access and presence — so when the system knows the house is empty, it arms itself. When you arrive, it stands down.
- Intruder Alarm
- CCTV
- Perimeter Detection
- Presence Logic

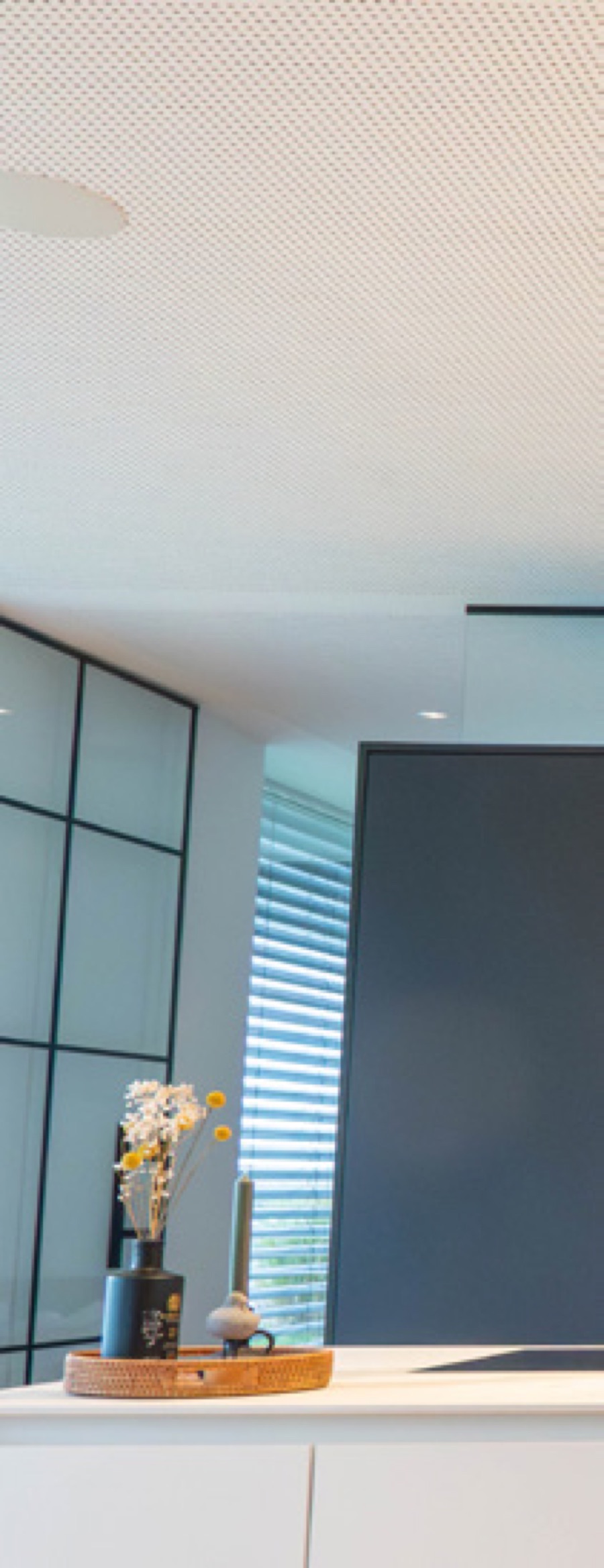

04 — Shading
Daylight managed. Glare eliminated.
Motorised blinds and curtains driven by sun position, time of day, and occupancy — not buttons. The system tracks the solar arc and adjusts position to prevent glare without losing natural light.
Coordinated with lighting scenes: as shading descends at dusk, the lighting compensates automatically. No intervention required.
- Solar Tracking
- Scene-linked
- Motorised Blinds
- Loxone Tree
05 — Access
Entry on your terms.
NFC, biometric, and code-based entry. Gate, garage, front door, and internal zones. Visitor management. Tied to presence and security scenes.
06 — Audio
Audio tied to the logic of the house.
Whole-home and zoned audio. In-ceiling, in-wall, and outdoor. Source management across rooms. Integrated into presence scenes so the system responds to occupancy, not inputs.
The Loxone App
Full control. No engineering degree required.
The Loxone app gives you complete visibility of every system in the building — lighting scenes, temperature per room, energy consumption, security state, and EV charging — on a single screen.
Control is available locally and remotely, with end-to-end encryption. The app connects directly to your Miniserver — not through a third-party cloud service.

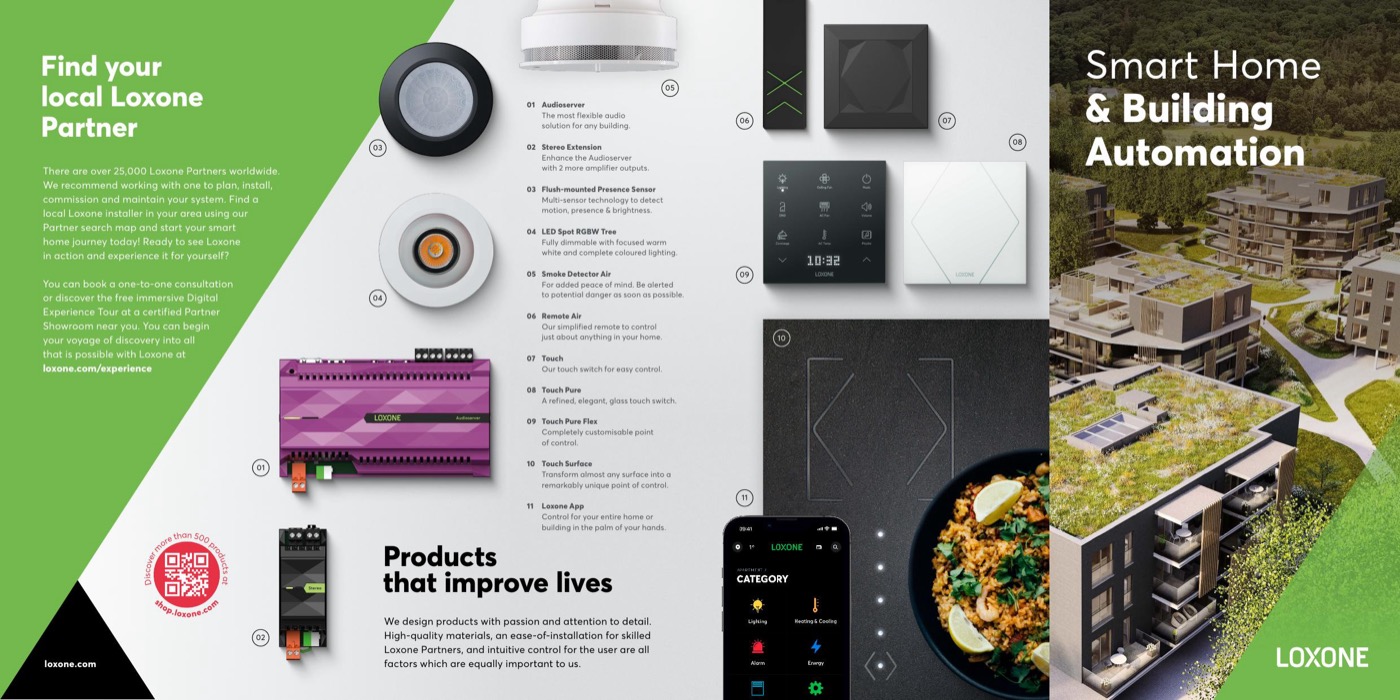

The Loxone Miniserver
The brain of the building.
Not the cloud.
The Loxone Miniserver is a DIN-rail mounted controller that runs every logic rule, every automation, and every schedule for your entire property — locally, without a cloud subscription or recurring licence fee.
If the internet fails, every automated function continues without interruption. All logic is processed on-site. The system does not depend on any external service.
Capabilities
-
Loxone Tree + Air
Wired and wireless peripherals on the same bus — sensors, switches, actuators, Touch panels
-
Open protocol support
KNX · Modbus · DMX · 1-Wire · EnOcean · HTTP · MQTT · DALI
-
Encrypted remote access
No VPN, no open ports — end-to-end encrypted tunnel via Loxone Cloud DNS
-
Expandable architecture
Tree Extensions, Relay Extensions, Dimmer Extensions — all add capacity without replacing the core
-
No recurring costs
No licence fees, no subscription, no cloud dependency — the system you install is the system you keep
Technical specification
- Processor
- ARM Cortex-A7, 600 MHz
- Memory
- 256 MB DDR3
- Storage
- 4 GB eMMC + SD card
- Network
- Gigabit Ethernet
- Digital inputs
- 8
- Digital outputs
- 12
- Analogue I/O
- 4 in / 4 out
- CAN / USB
- 2 CAN bus · 1 USB
- Dimensions
- 160 × 90 × 28 mm
- Power
- 24 V DC · DIN-rail
- Max I/O points
- 2,500+ via extensions
- Operating temp.
- −10 °C to +55 °C
System architecture — how everything connects
Return on investment
Intelligence that pays
for itself.
Buildings account for 59% of UK electricity consumption. A Loxone system reduces that share through presence-based control of heating, shading, ventilation, and lighting — every system working in concert, not independently.
Documented UK savings range from 25% to 58% depending on property type and prior efficiency baseline. For a property over 5,000 sq ft, the energy reduction alone typically represents a material portion of the system cost within five years.
Average energy saving
30%
average energy saving across Loxone-verified installations (Loxone data)
Documented peak reduction
Up to 58%
reduction achieved in documented UK projects (Loxone Smart Times, 2025)
Annual energy saving
£5,400
annual saving on energy bills for a 10,000 sq ft commercial building (UK case study, Loxone data)
System design life
20 years
design life — no subscription, no license fees, no forced hardware replacement
Commercial applications
Beyond the residence.
Loxone's architecture scales from a single apartment to a multi-building estate, a boutique hotel, or a premium commercial development. The same platform, the same logic, the same single point of control.
We work with developers and commercial clients where the standard of finish demands a level of integration that off-the-shelf building management systems cannot deliver.
Private Estates
Multi-building integration across primary residence, guest accommodation, leisure facilities, and grounds. One system, one interface, one support relationship.

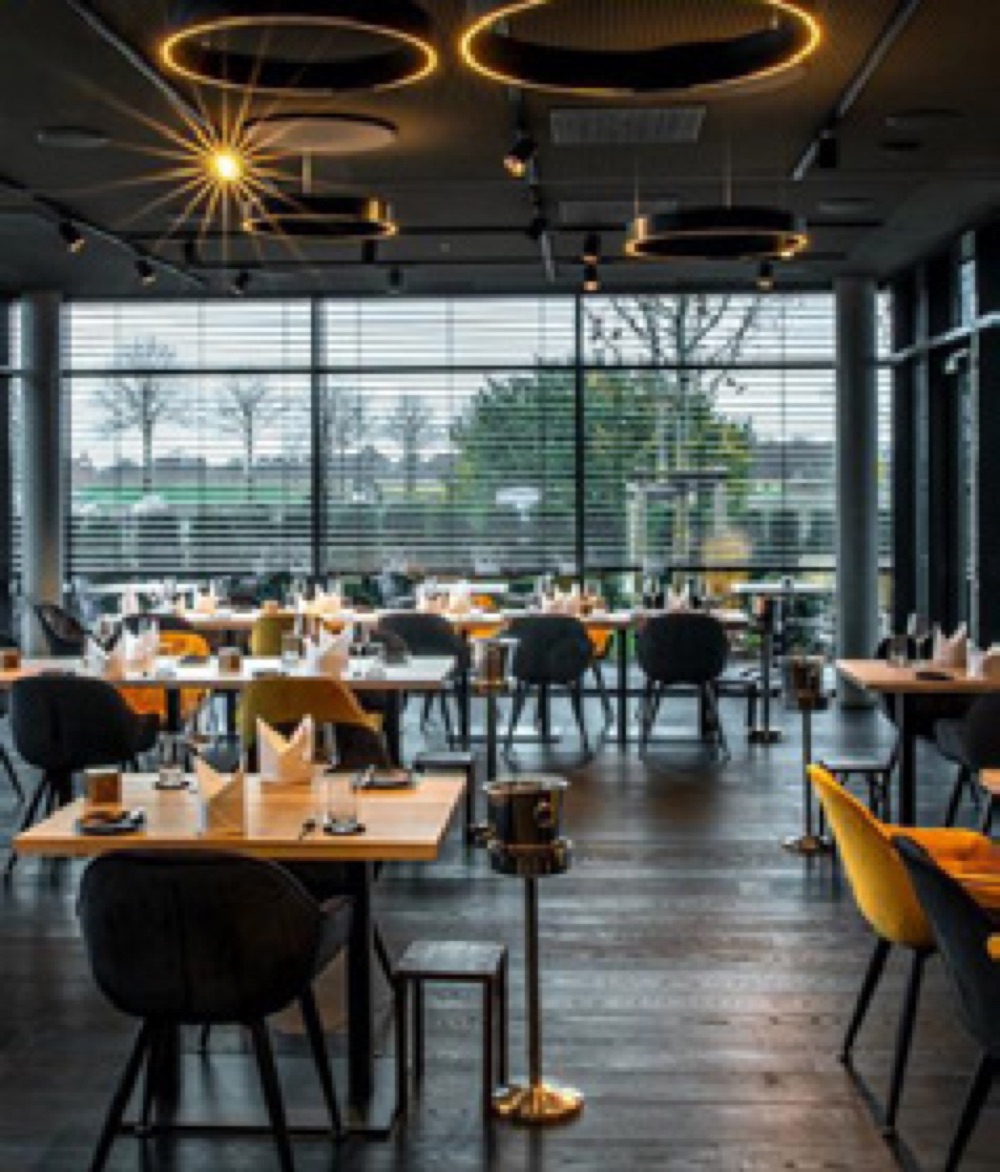

Boutique Hospitality
Premium hotels, serviced apartments, and boutique venues. Guest-controlled room environments, automated arrival sequences, energy reporting per unit. Self-check-in sequences, per-room energy metering, and staff alert routing — all managed from a single interface without proprietary hotel management software.
Premium Developments
Residential developments where Loxone integration is a specification requirement or a point of differentiation. We work with developers from planning stage. Individual utility metering per unit, common area automation, and access control across all zones — delivered from one Miniserver architecture per building.
